Hyper-X High-Power LED Driver

Name: Hyper-X High-Power LED Driver
Brand: Custom LED
SKU: HP_DRV1_REV0
Price: 22.95 EUR
Availability: InStock

P/N: HP_DRV1_REV0

€22,95 EUR

In Stock! Click Add to Cart to view available shipping methods and rates.

Solid-State, Current Regulating, Dual Output driver for Hyper-X LED Modules.
Operates with dual-intensity for run/brake or run/turn applications.
One Driver can power 3 red or yellow LED modules, OR 2 white or blue modules (see installation).

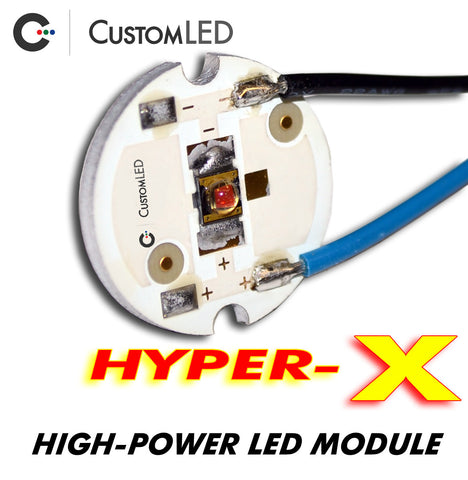

Requires Hyper-X LED Modules.
Made in the USA.
1-Year Warranty & Satisfaction Guarantee.
Ships same business day.

Overview

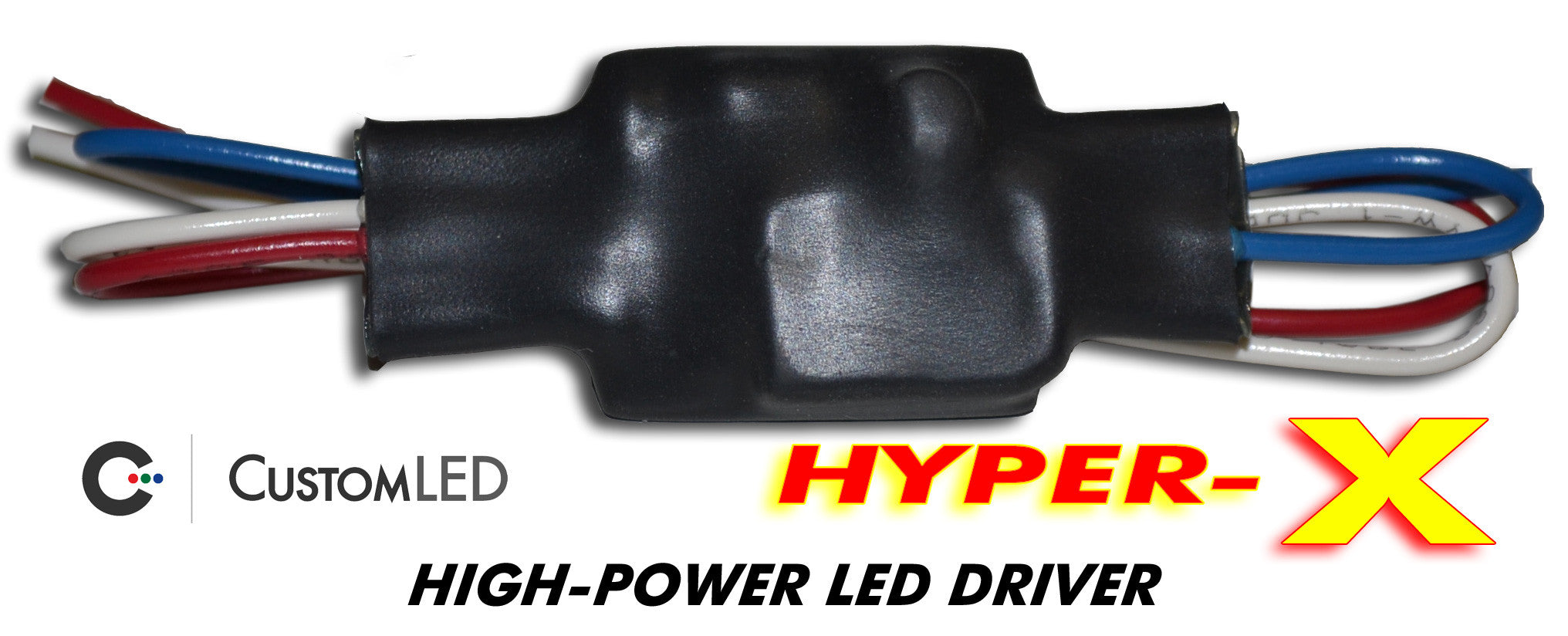

The Hyper-X LED Driver is designed to power the Hyper-X LED Modules with dual-intensity and current regulation. The driver has two inputs (dim/bright), and one output to connect to the Hyper-X LED Module(s).

One single Driver will power up to 3 red or amber LED modules, and 2 white or blue LED modules when wired as per the provided instructions.

Specifications

Input Voltage: 24vdc max, min depends on number of LEDs driven.
Size: Approximately 2" x 0.4" x 0.81"
Current draw: <350mA (bright)
Waterproof: YES
Wire leads are approximately 8" long.

Installation

Hyper-X High-Power 1 Watt LED Module Installation Instructions | Custom LED

Installation of the Hyper-X LED Driver is as follows:

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.
